SPECIFICATIONS

Brand Name: RULLZ
Hign-concerned Chemical: none
Origin: Mainland China
Certification: CE
Model Number: New 2X2 WALL Video Controller
Battery: No
Retail Package: No





Warm Tips:

1. This product is used for horizontal screens,If you use for vertical screen, pls contact us to buy other ones.

2. 3 kinds of resolutions,pls buy it correctly as you need.




Introduction:

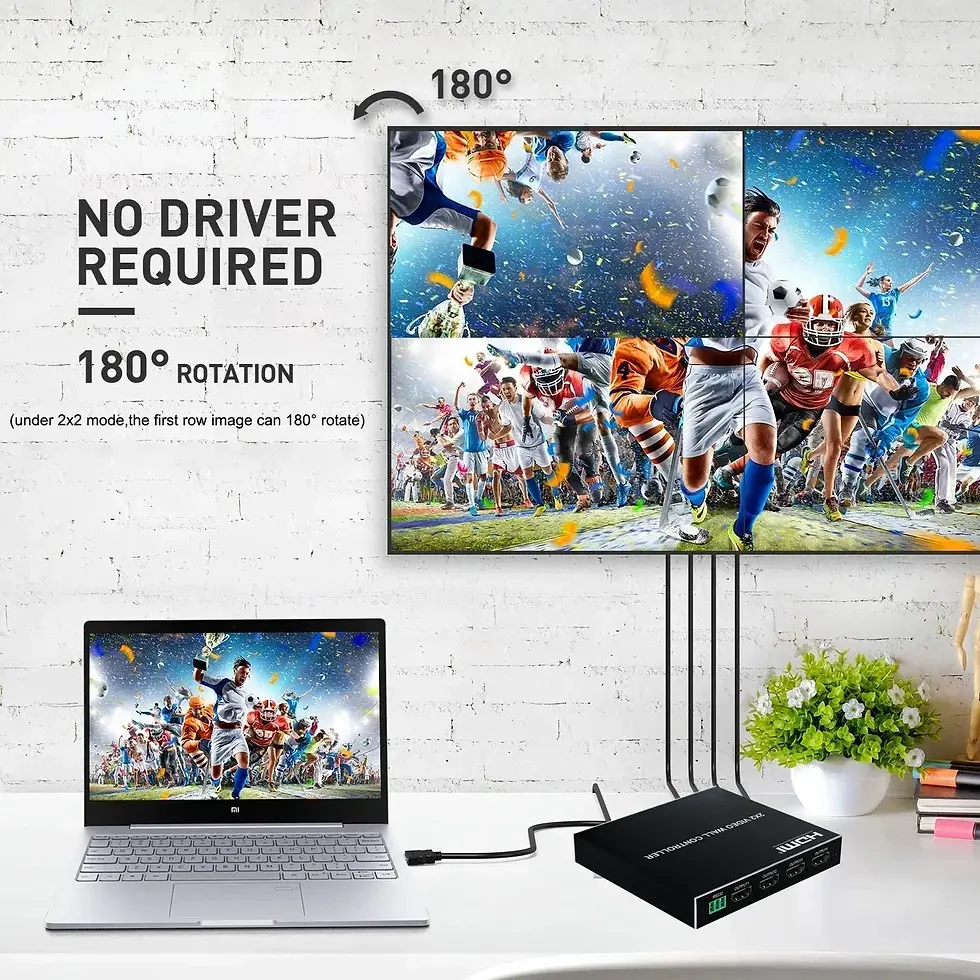

 This 2x2 video wall controller, support HDMI or DVI input and 4 HDMI output, the main function is to divide a

complete HDMI, DVI HD image signal into 4 blocks and assign to 4 video display units (such as rear projection

unit, LCD TV, etc.). Complete with 4 HDMI HD video display units to form a large dynamic image wall.





Features:

* Support HDMI and DVI input;

* Support 4 HDMI output;

* Output support RGB 4:4:4;

* 1080p60 to 1080p60 version : Support input/output up to 1080P 60Hz;

* 4k30 to 1080p 60 version : Support input up to 4K 30Hz,output up to 1080P 60Hz;

* 4k30 to 4k30 version : support input/output up to 4K 30Hz

* Support RS232 control;

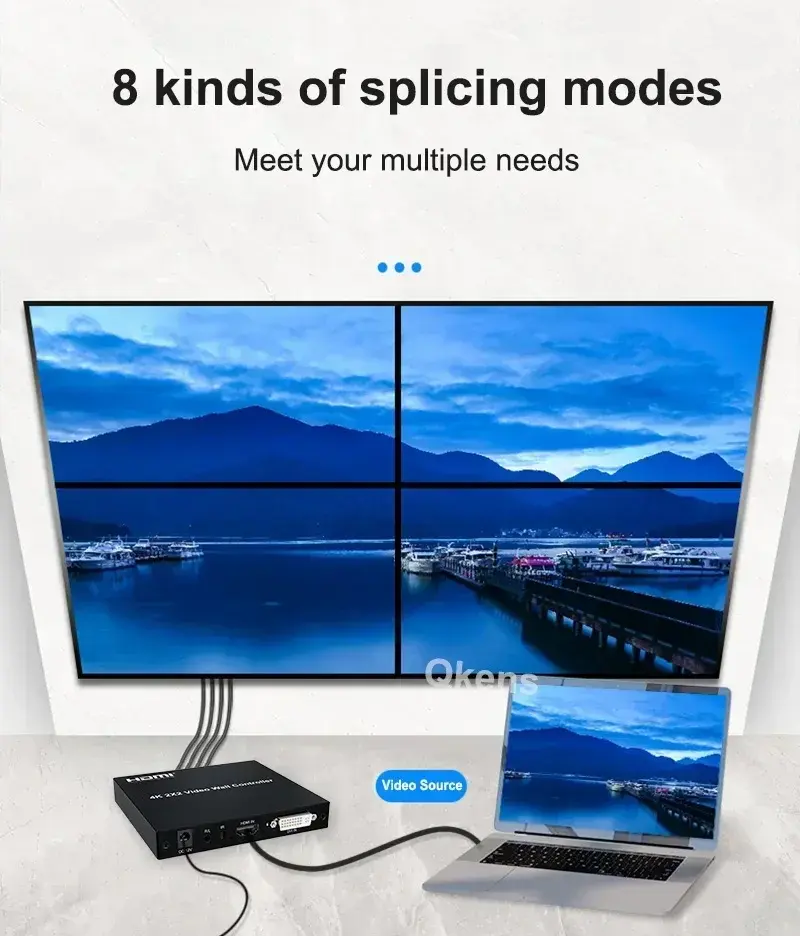

* Support 2X2/1X2/2X1 splicing, easy operation, plug and play;

* Support 2X2 automatic splicing function;





Specifications:

Support audio format ............................................................................................. stereo

4k30 to 1080p 60 version: Input/Output cable length ................. ≤5m AWG26 HDMI standard cable

1080p 60 to 1080p 60 version: Input/Output cable length ................. ≤5m AWG26 HDMI standard cable

4k30 to 4k30 version: Input/Output cable length  ........................... ≤10 M,AWG26 HDMI standard cable

Max working current ...................................................................................... 300mA

Power adapter specifications ........ input AC (50HZ, 60HZ) 100V-240V Output 12V DC/1A

Operating Temperature range ........................................................... (-10℃～ +45℃)

Dimension (L x W x H) ...................................................................approx. 121x119x19(mm)

Weight .......................................................................................................approx. 228g





Package Content:

2x2 Video Wall Controller  x1

Power supply adapter x1

User manual x1

Remote Controller without battery x1

NO Retail package box and other accessories,if need,pls contact us first

Following use 1080p version as introduction:
