SPECIFICATIONS

Brand Name: HUATENGVISION
Hign-concerned Chemical: none
Magnification Ratio: 500X & Under
Origin: Mainland China
Theory: Video Microscope
Model Number: HT-SUA31~501GM-T
Is Smart Device: no
Features: High Definition
Certification: none
Material: Metal
Drawtube: N
Pixel: 0.3~5.0 Megapixels
Connection Method: USB 3.0
Colour: Color/Monochrome
Shutter Type: Global Shutter
Lens Interface: C Mouth
Chip Type: CMOS
Housing Dimensions: 29mm x 29mm x 32.7mm
Support System: Windows 7/10/11 32/64bits and Linux 32/64bits

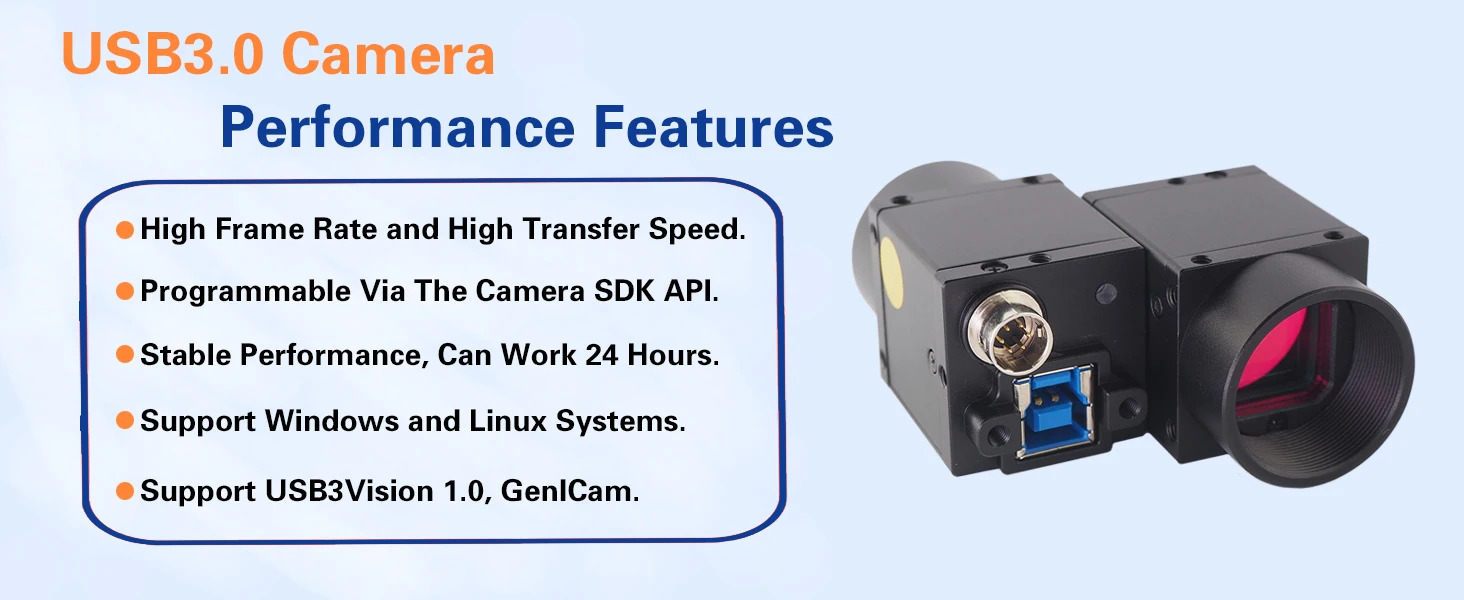

USB3.0 Series Features:
1) Camera transfer speed is fast.
2) Compatible with U3VISION vision standard.
3) High frame rate camera, 0.3MP 790FPS, 1.3MP 210FPS, 4.0MP 88FPS, 20.0MP 20FPS.
4) Support multiple cameras to work at the same time.
5) Data packet retransmission technology to ensure reliable data transmission.
6) Provide SDK, easy to use and convenient.
7) Support external trigger and flash.
8) SDK supports Windows and Linux systems.
9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.

Product Feature:
1) Camera parameter archive is saved as a file.
2) Camera name can be modified to easily distinguish multiple cameras.
3) With a maximum of 16K bytes of data storage.
4) Support 8bit, 24bit, 32bit image format output.
5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.

Package Incluede:
1 x Industrial Camera ( No Include Lens )
1 x 3 Meters  Cable
1 x Trigger line

Industrial Camera Parameters：
Model
Pixel
Resolution
Frame rate
Shutter Type
Sensor
Pixel Size
Bit Depth
Color
HT-SUA33GC
0.3MP
640X480
790 FPS
Global Shutter
1/5.6" OEM
4.0μm
8 bit
Color
HT-SUA33GM
0.3MP
640X480
790 FPS
Global Shutter
1/5.6" OEM
4.0μm
8 bit
Mono
HT-SUA34GC
0.3MP
