SPECIFICATIONS

Brand Name: udvbio
Origin: Mainland China
Hign-concerned Chemical: none
Smart home platform: none
Model Number: F80-ID-WiFi
Product Name: Time Attendance and Access Control Machine
Face Capacity: 1,000
Fingerprint Capacity: 10,000
Card(125khz ID) Capacity: 1,000
Log Capacity: 200,000
Menu Langauage: English or Spanish
Communication: WiFi, tcp/ip,USB client Host
Access Control for: Lock,Exit Button



Software Operation






Specification
Face Capacity:1,000
Fingerprint Capacity:10,000
Card Capacity(RFID 125khz):1,000
Storage capacity:200,000
Communication:Wifi,TCP/IP, U-disk
Menu: English or Spanish
OS:LINUX
FRR:<= 1%
FAR:<= 0.0001%
Working voltage:DC12V3A
Working temperature:0℃－40℃
Working humidity(RH):20% ~ 80%
Recognition way:Face,Fingerprint,Card,password
Recognition ways1:1, 1:N
Door sensor:Gate magnetic signal input
Alarm:Alarm output
Exit:Door switch signal input
Wiegand:1 group of WG26/34 output

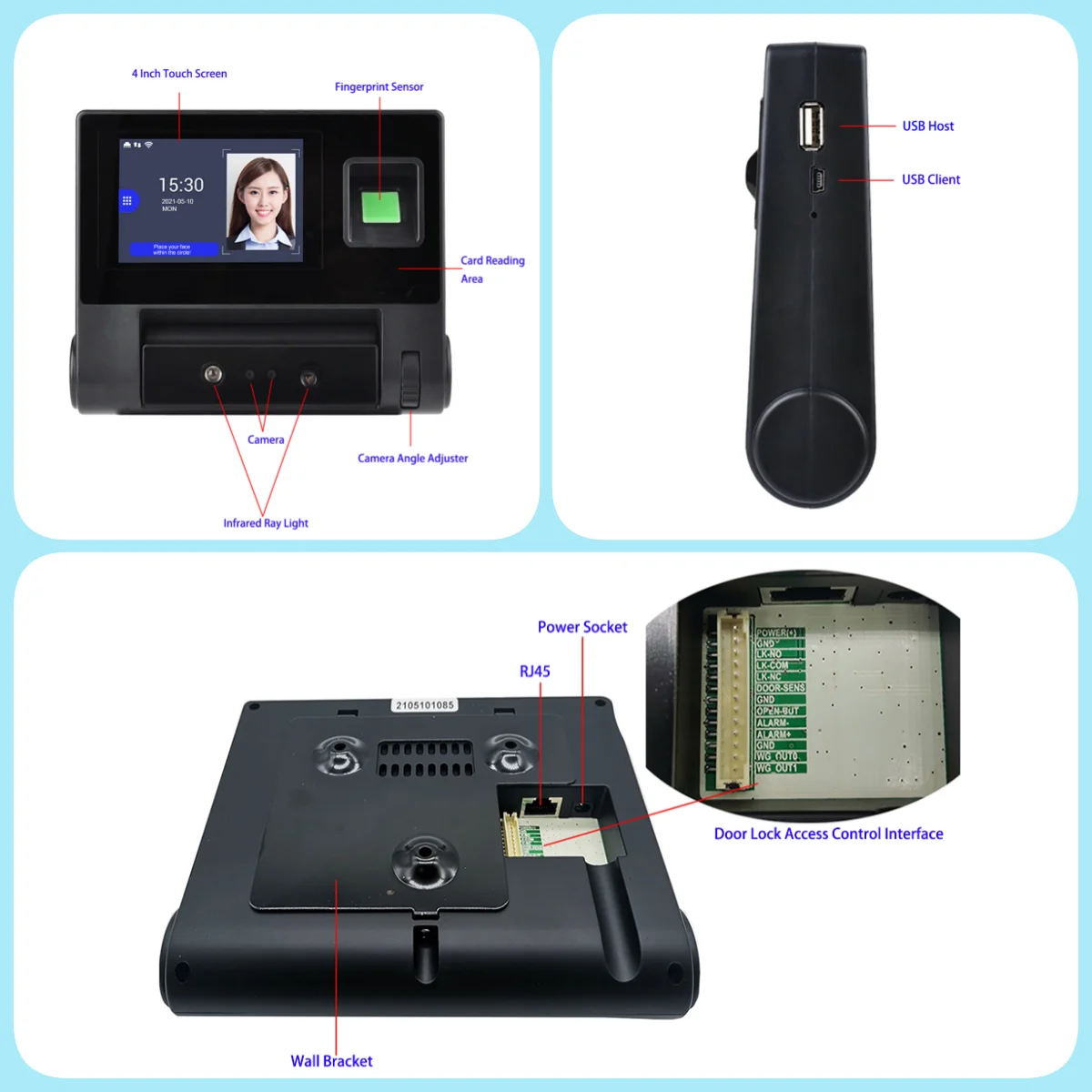

Device Details

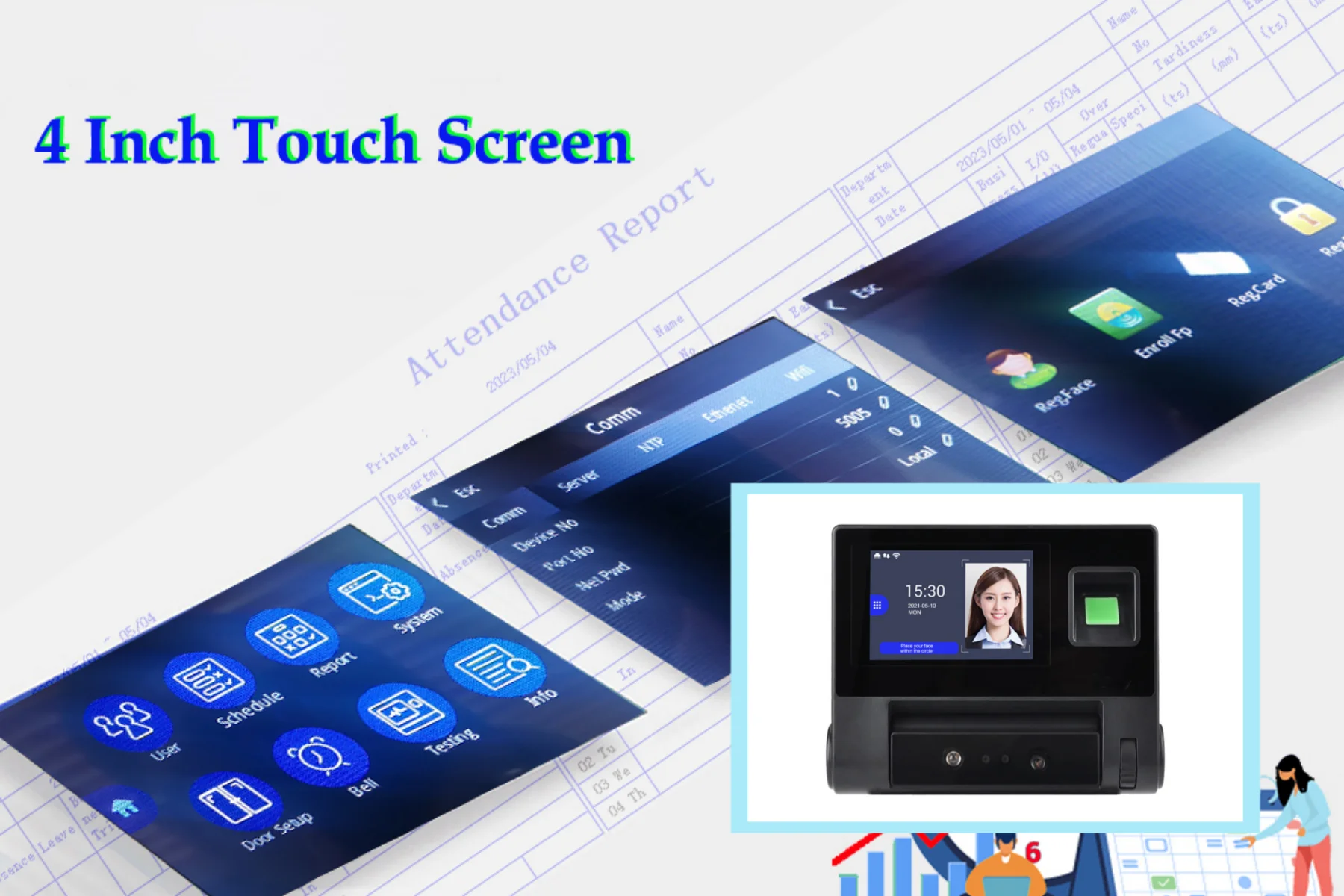

4 Inch Touch Screen

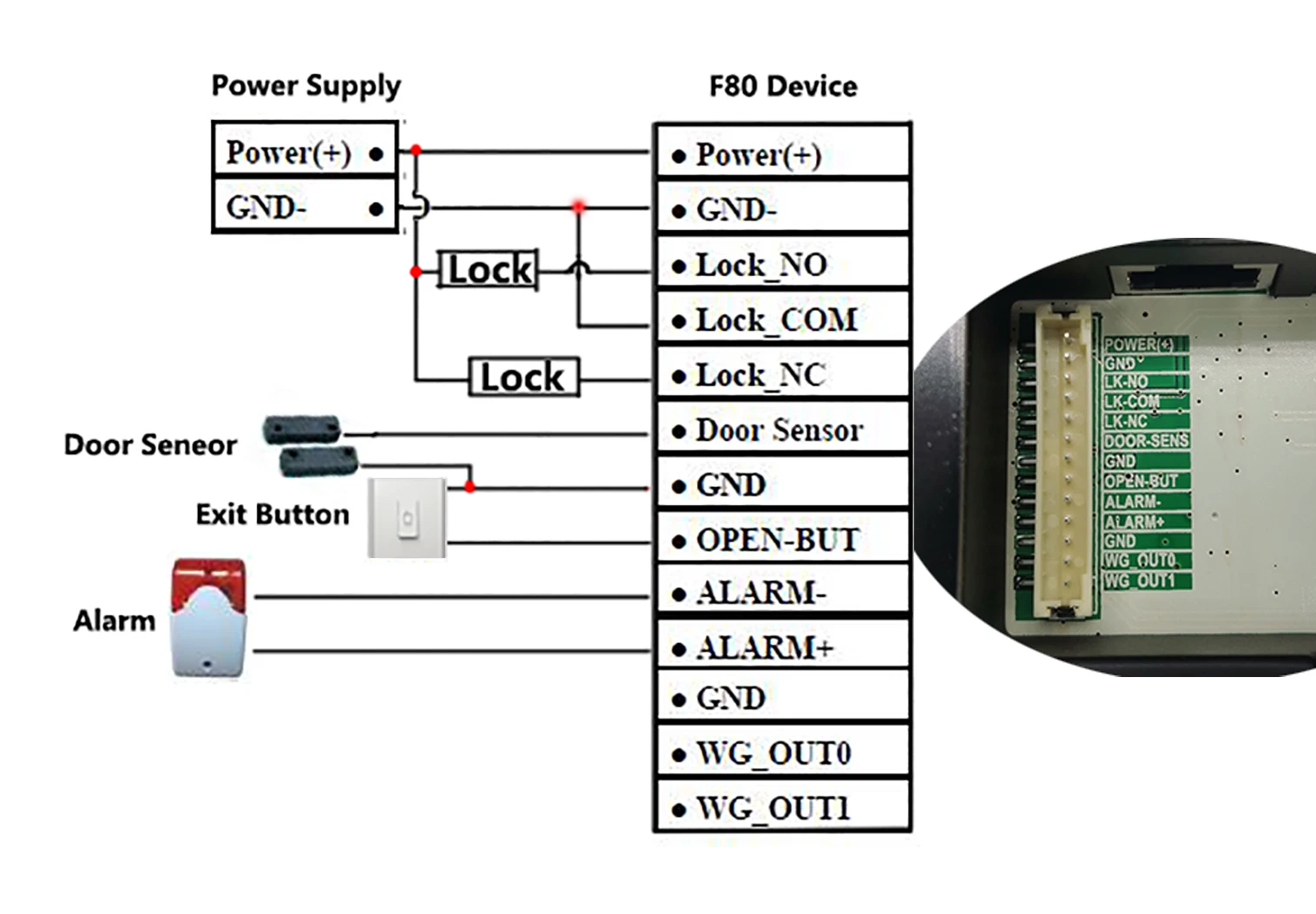

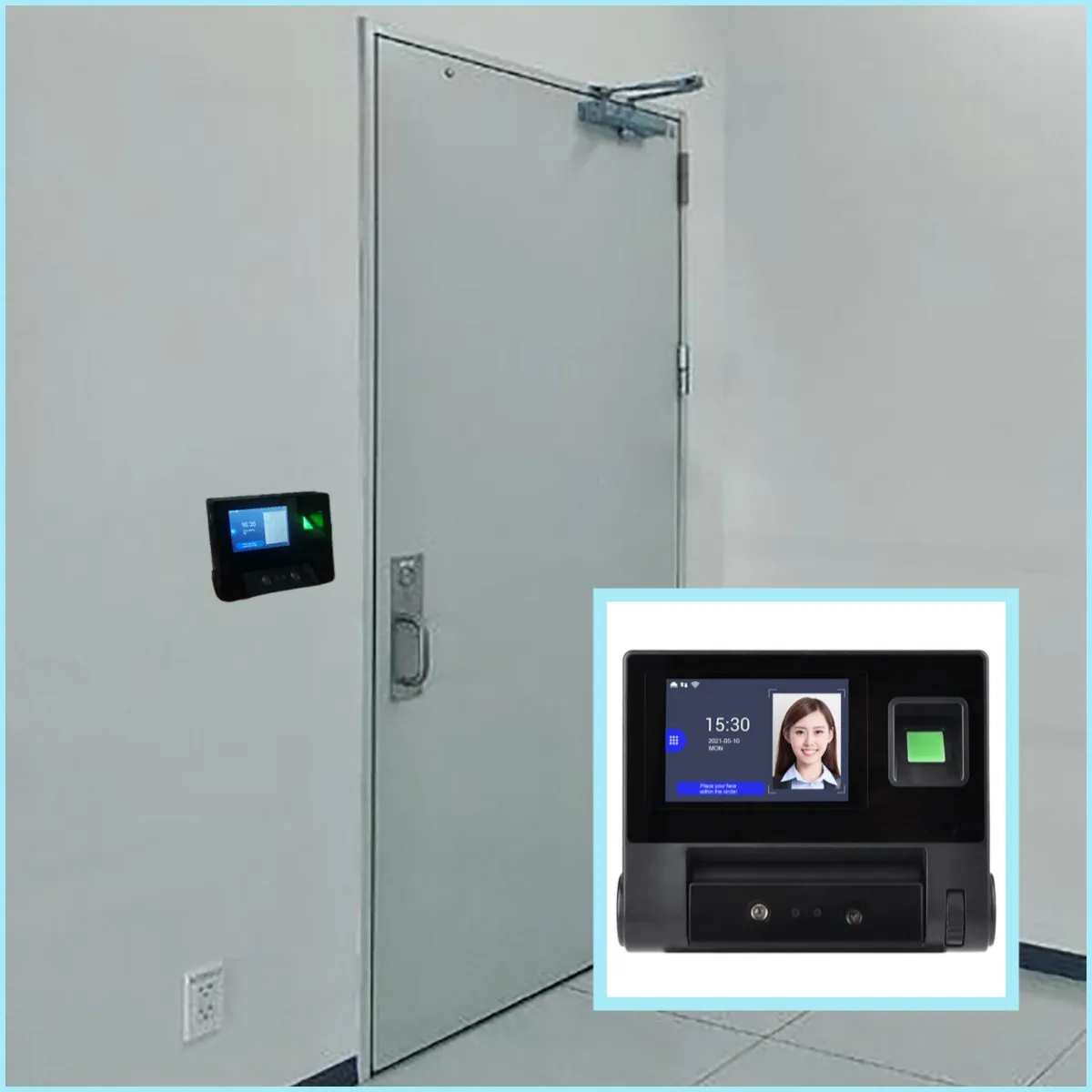

Door Access Control Function

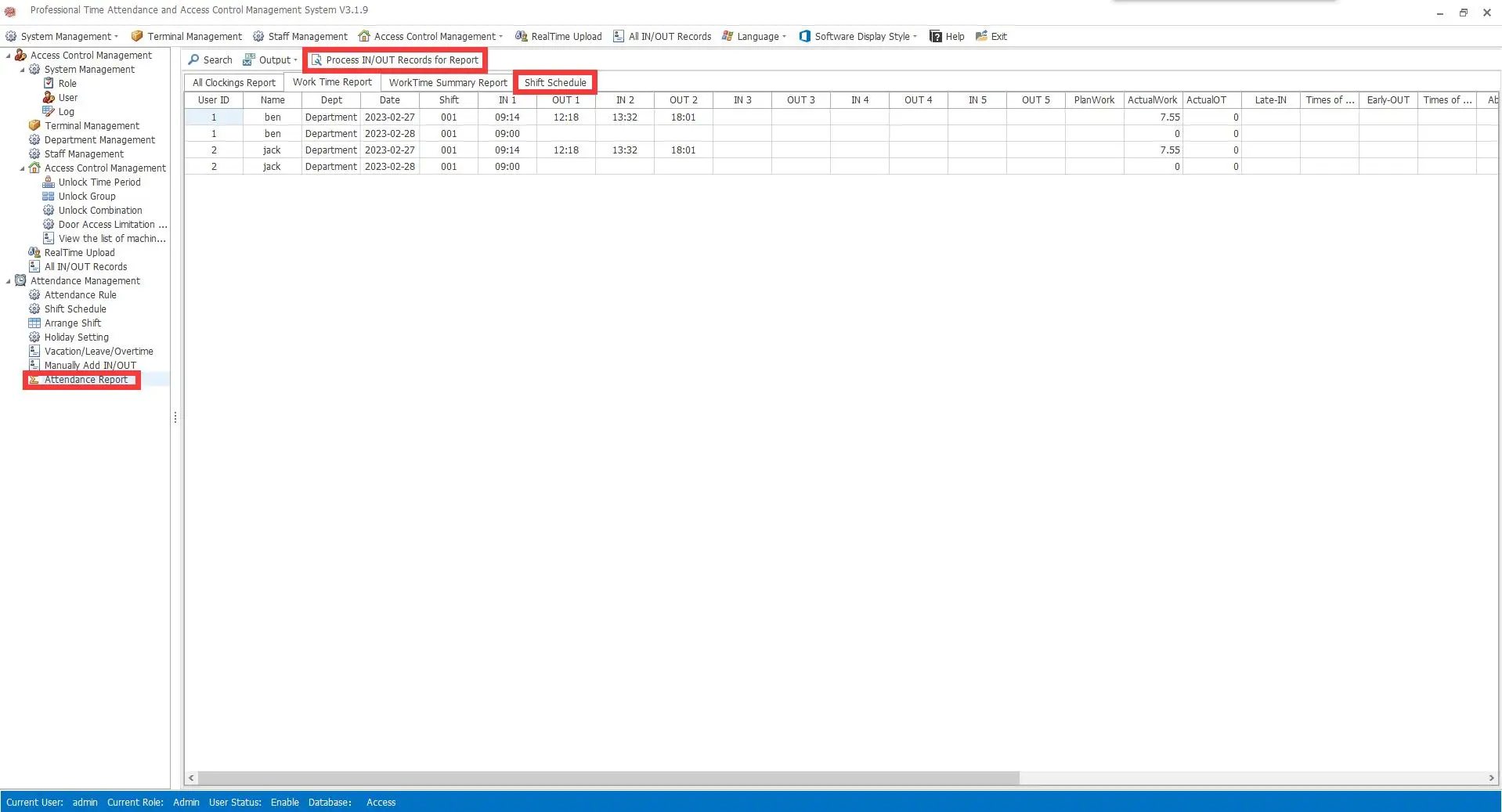

SSR Excel Report

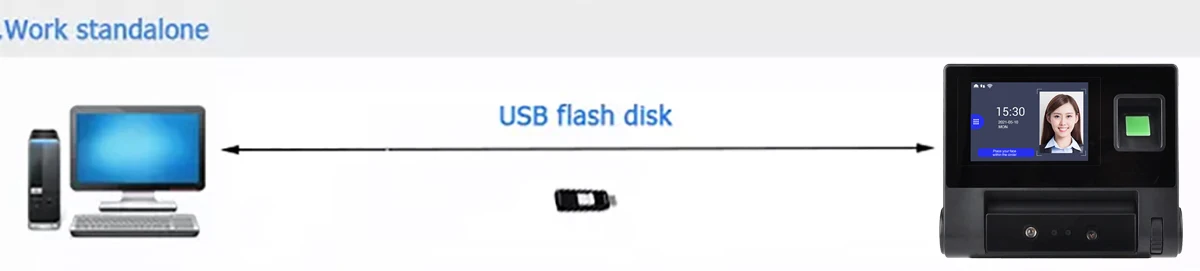

you can use usb flash drive to download  Excel Report from Device, please kinldy note , UBS only support usb 2.0 and less than 32g.

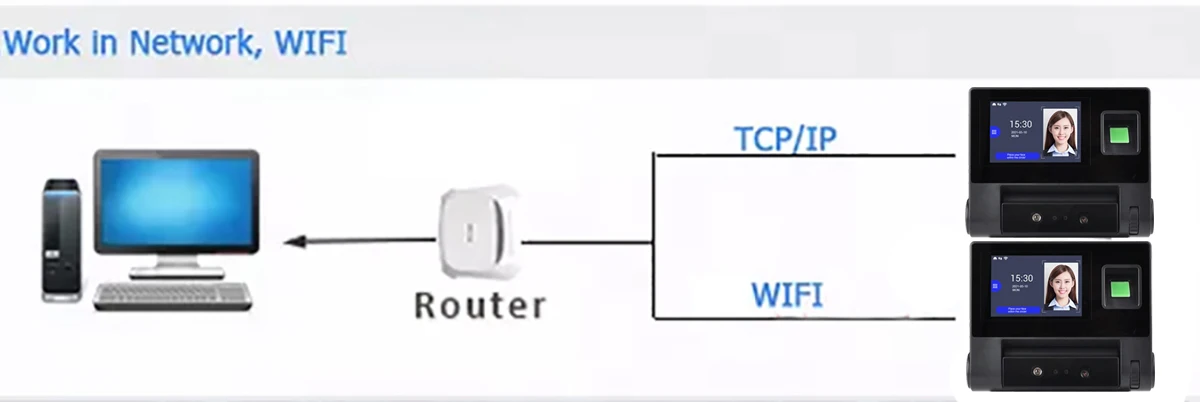

Free Software(WiFi or TCP/IP Comm.)

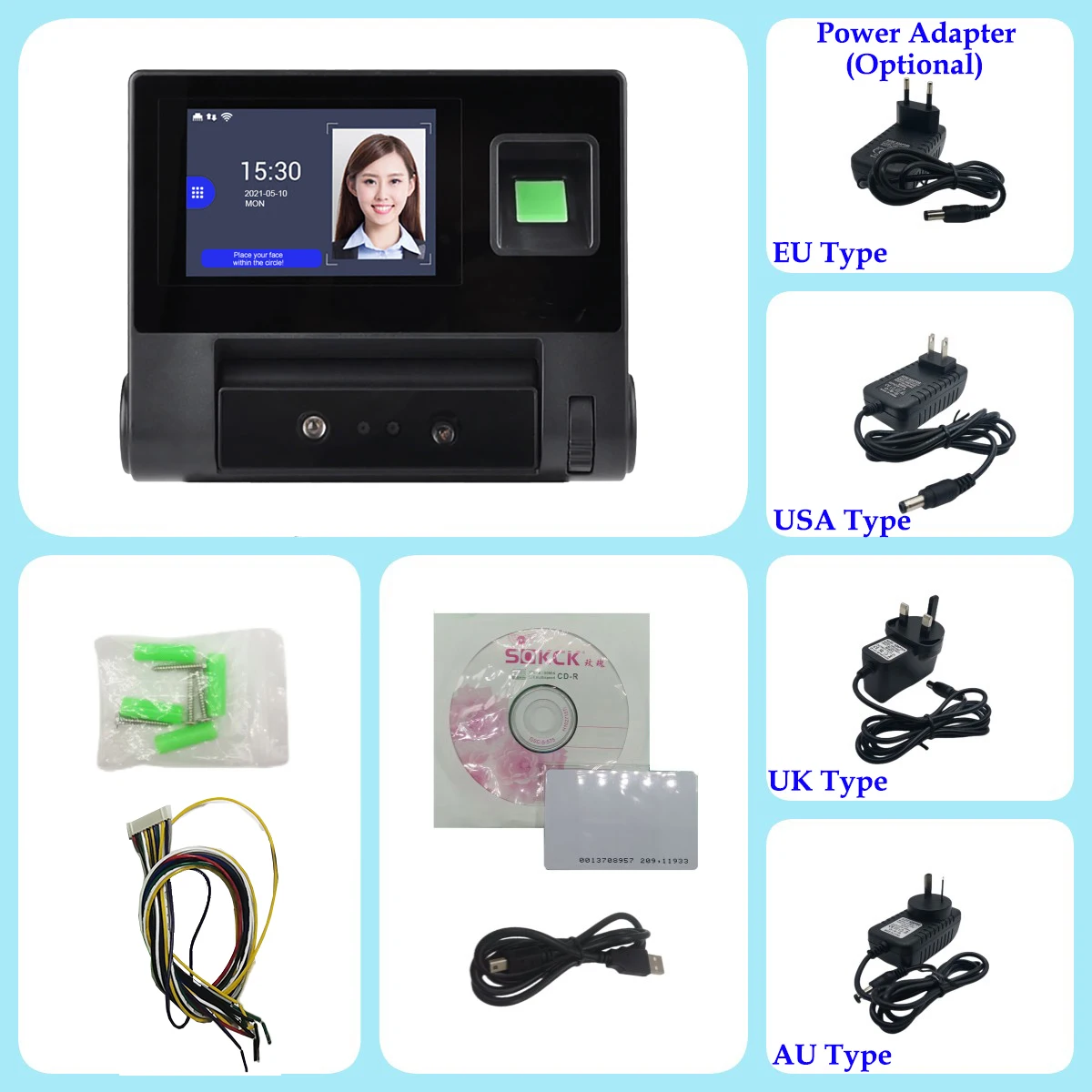

What is in Box
Remarks
