SPECIFICATIONS

Brand Name: udvbio
Origin: Mainland China
Hign-concerned Chemical: none
Model Number: MF6
Smart home platform: none
Fingerprint Capacity: 3000
Card Capacity: 3000
Password: 3000
Log Capacity: 100000
Communication: WiFi, Tcp/IP, USB
Menu: English
Access Control interface: 3rd Party Electric Lock, Door Sensor, Exit Button,Doorbell
Wiegand Signal: Input and Output
Choice: yes
semi_Choice: yes




Software Operation






Specification
Display:2.4inch TFT Color screen
Keypad: high sensitivity capacitive touch keypad
Appearance:ABS plastic
Fingerprint Capacity: 3,000
Card Capacity: 3,000
Password Capacity:3,000
Record Capacity:100,000
Menu Language:English
Communication:WiFi,TCP/IP,USB
Identify way:facial and password, RFID Card(IC card for option)

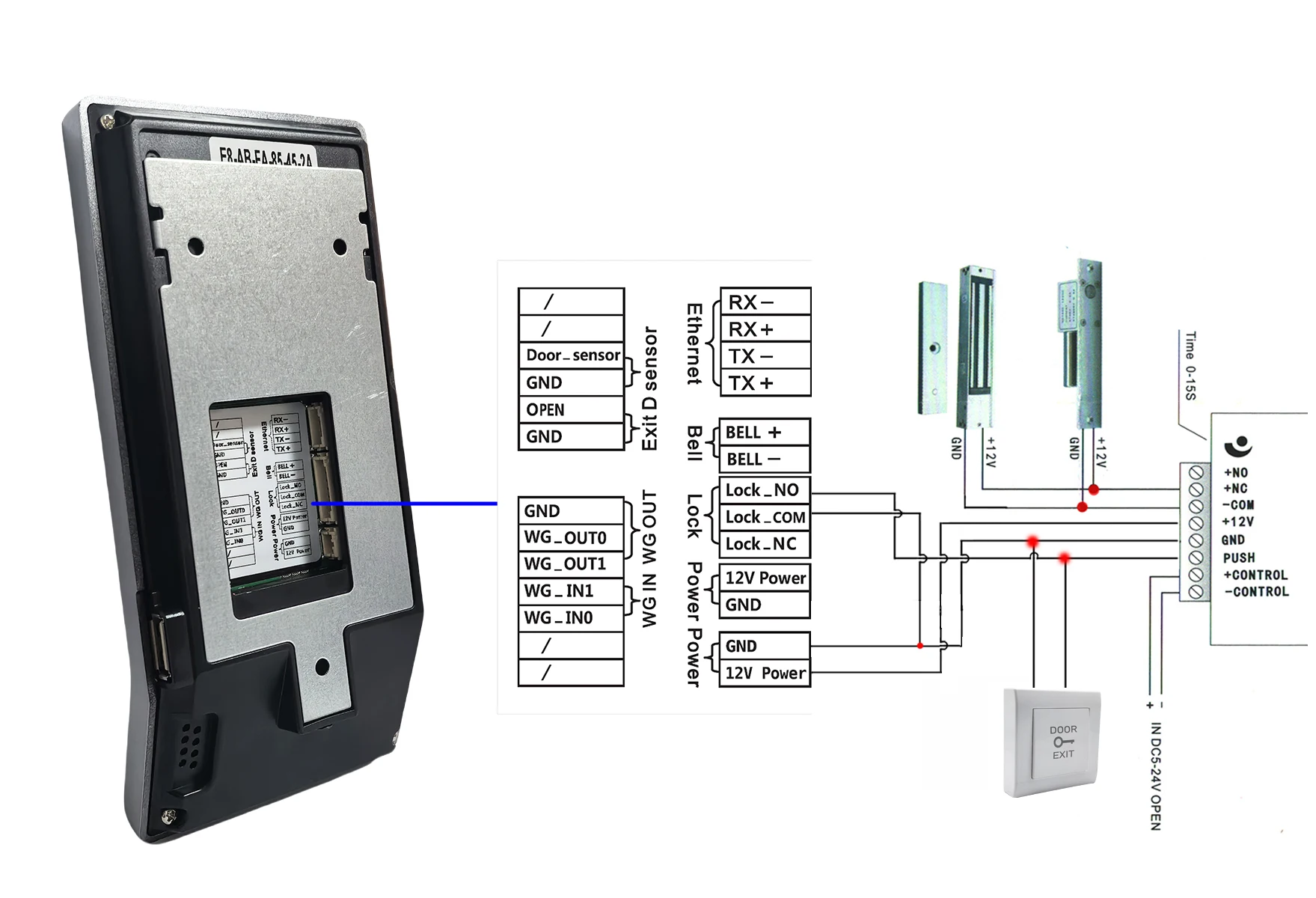

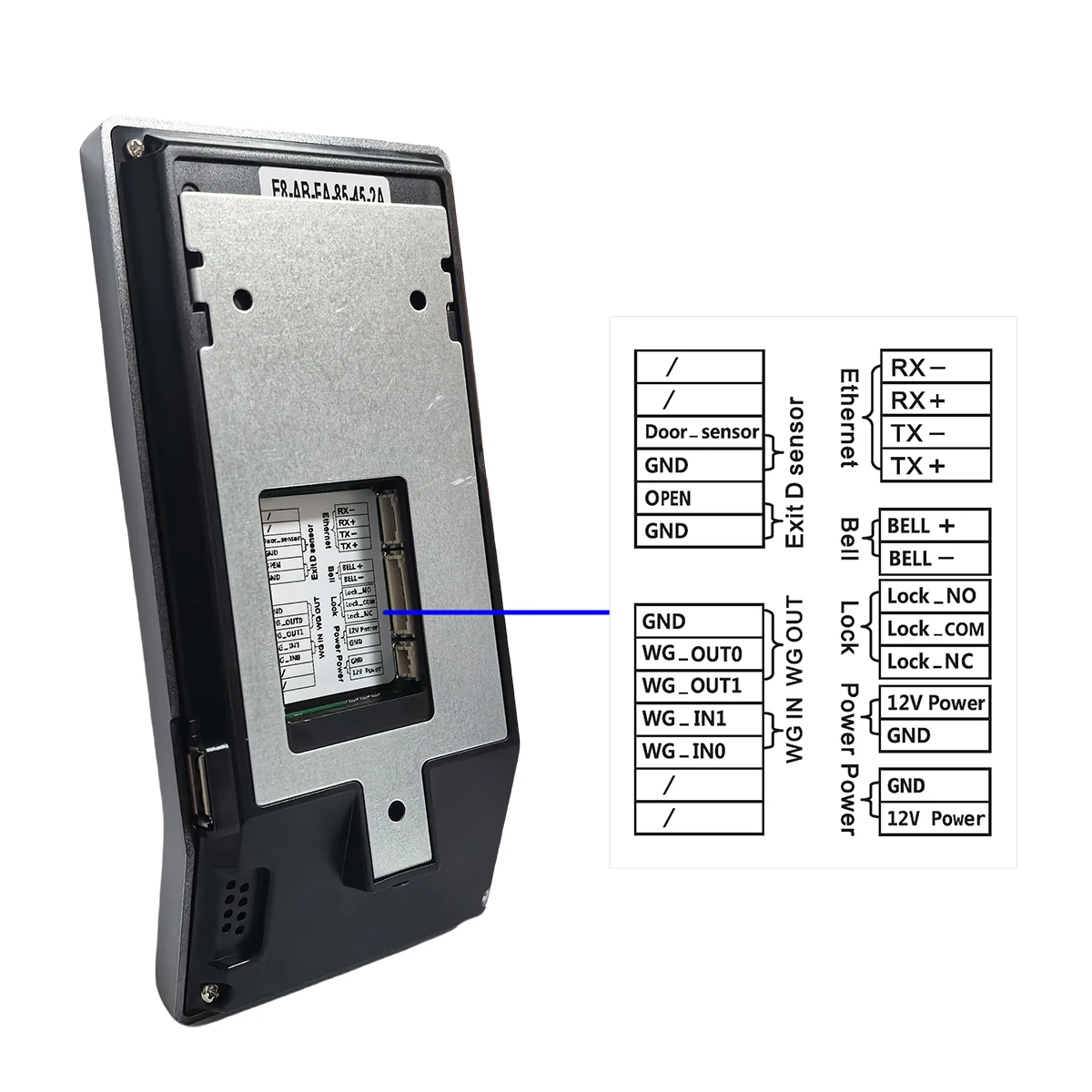

Access Control Interface:3rd Party Electric Lock, Door Sensor, Exit Button,Doorbell
Wiegand Signal:Input and Output
Working Voltage: DC12V1A
Working Temperature:0°C--45°C
Working Humidity:20%--85%
Software:Access control & time attendance software
Attendance report: Support U disk(USB2.0) to download the attendance report
Size of machine:170x80x18mm

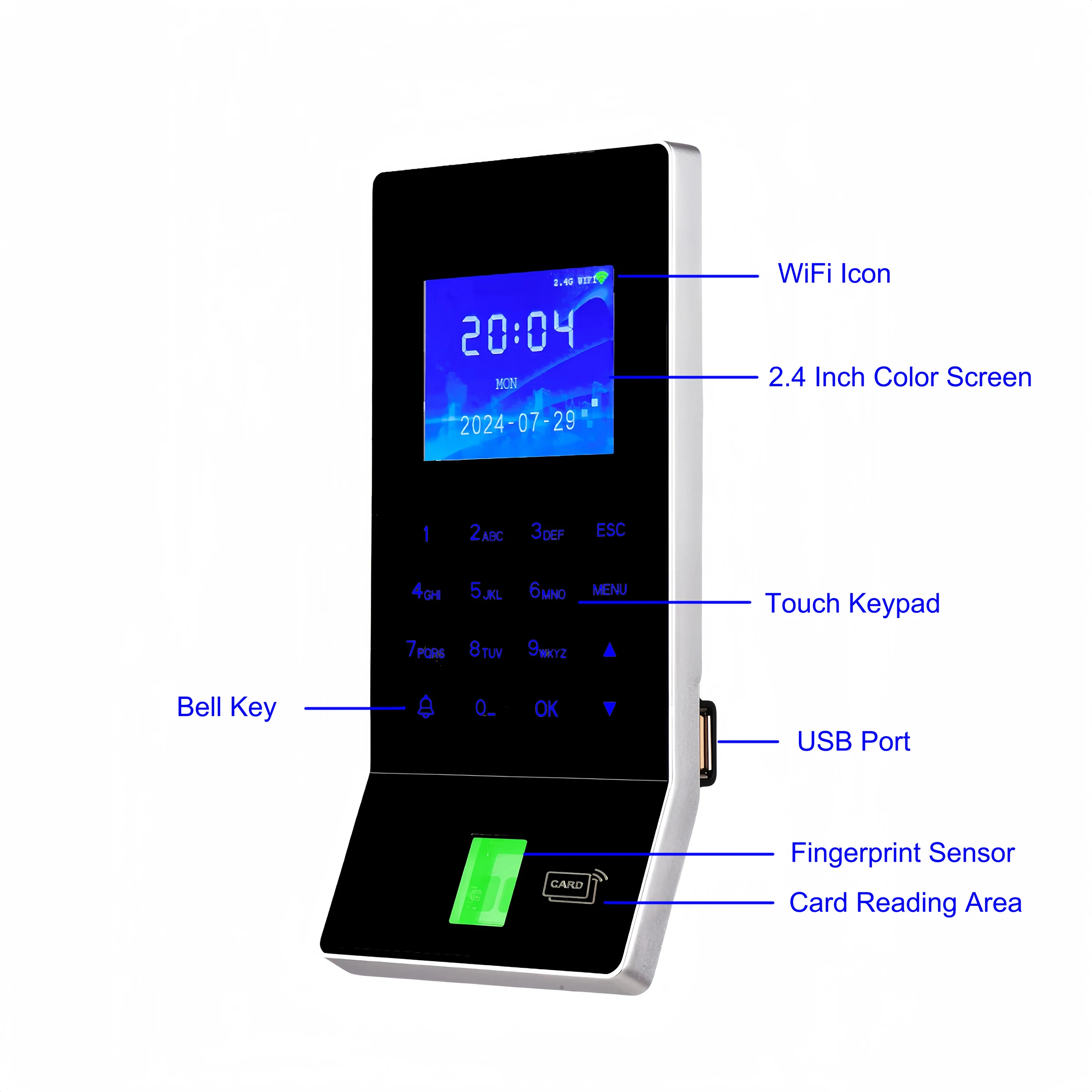

Device Details

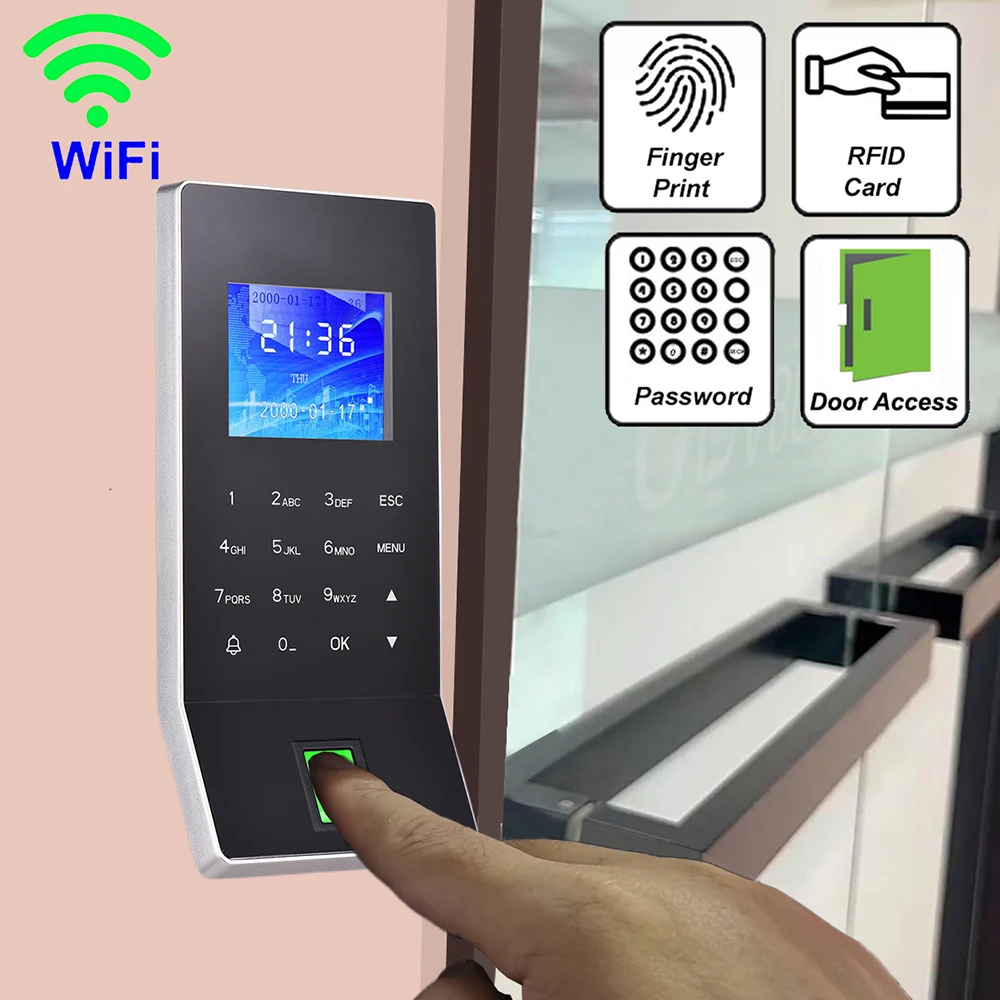

Door Access Control Function

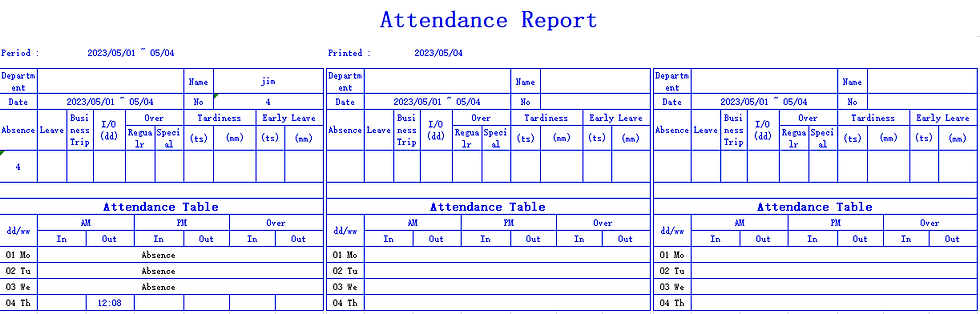

SSR Excel Attendance Report

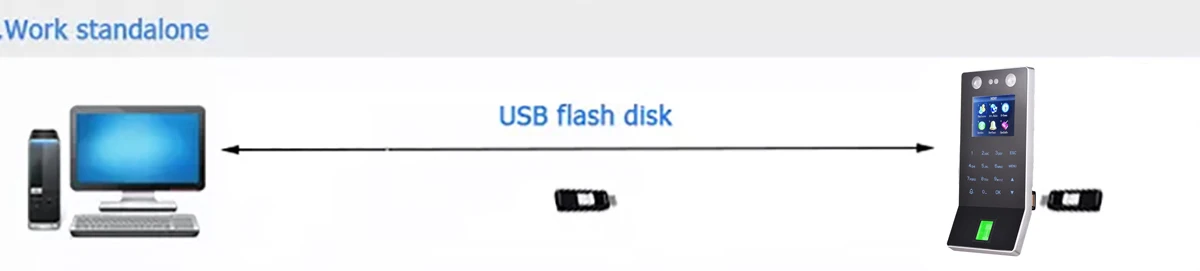

you can use usb flash drive to download  Excel Report from Device, please kinldy note , UBS only support usb 2.0 and less than 32g.

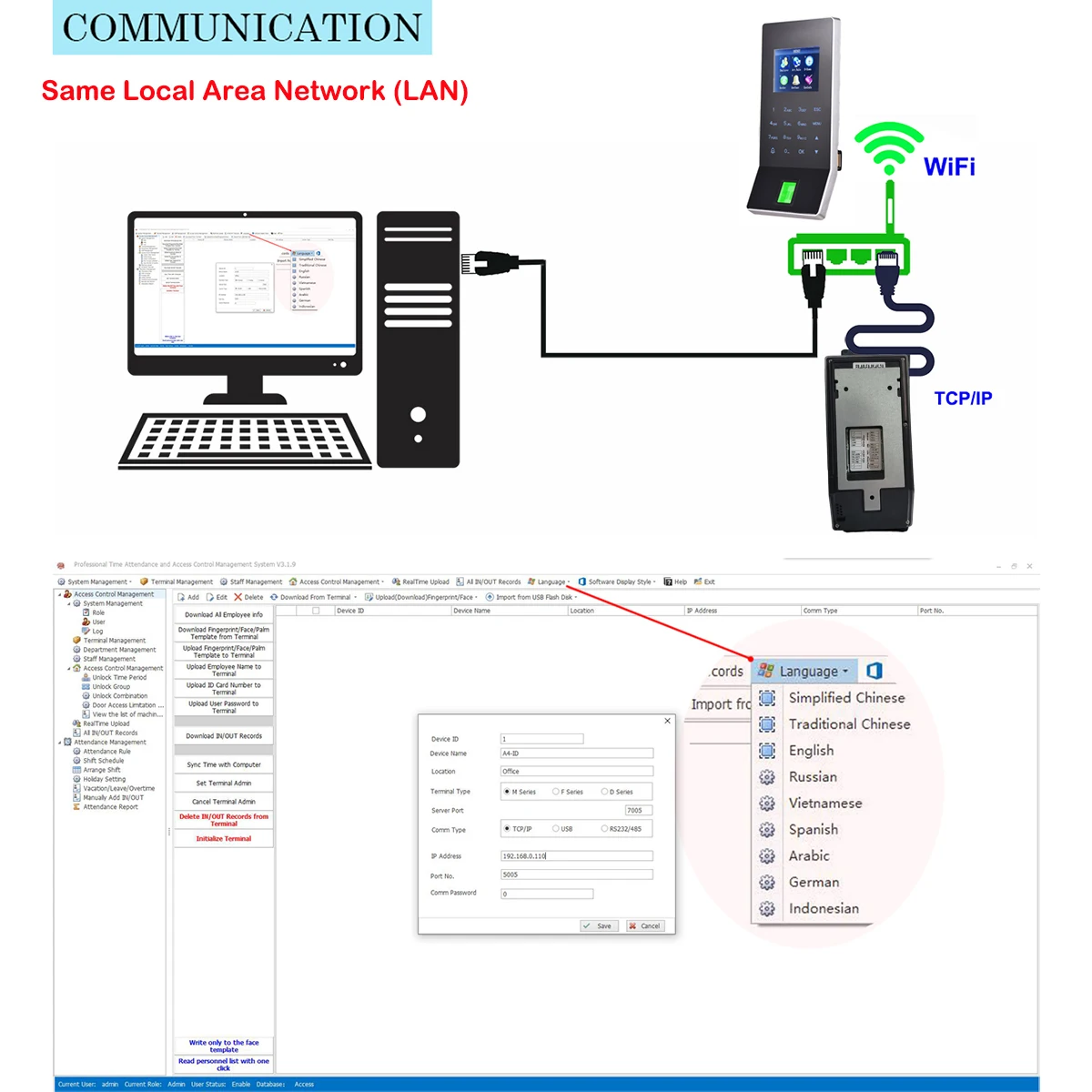

Free Attendance Software (WiFi & TCP/IP)

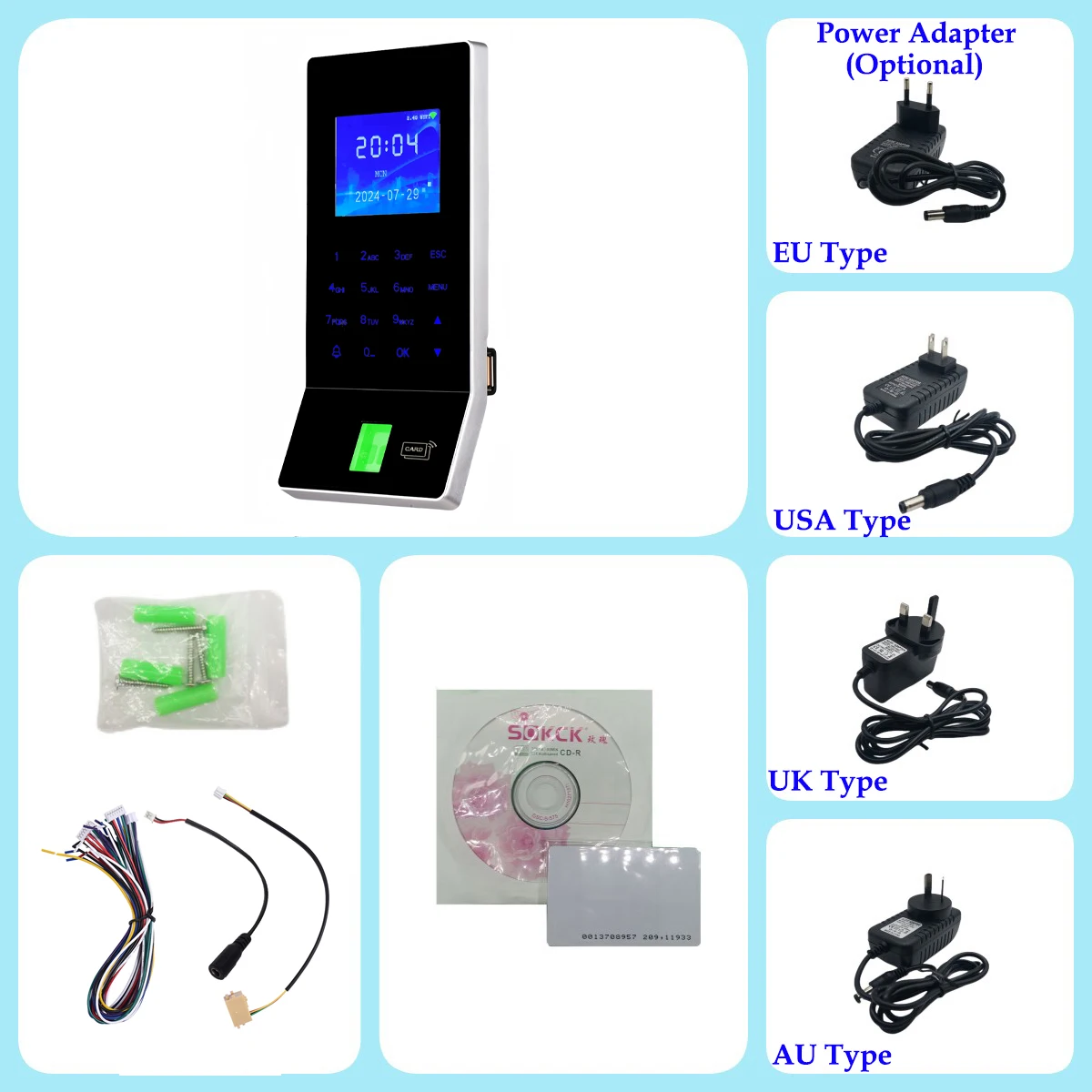

What is in Box
Remarks
